- Brand Name: UNI-T
- DIY Supplies: ELECTRICAL
- Certification: CE
- Origin: CN(Origin)
- Model Number: UT71A/UT71B/UT71C/UT71D/UT71E
- AC Current: 10A
- Is Smart Device: NO
- AC Voltage: 750V
- Measuring Resistance Range: 20MΩ-40MΩ
- Operating Mode: 0
- Display Type: Digital Display
- DC Current: 10A
- DC Voltage: 1000V
- Measuring Capacitance Range: 20mF-40mF
- Dimensions: 200mm x 93mm x 40mm
- Operating Temperature: 0 – 40 ℃

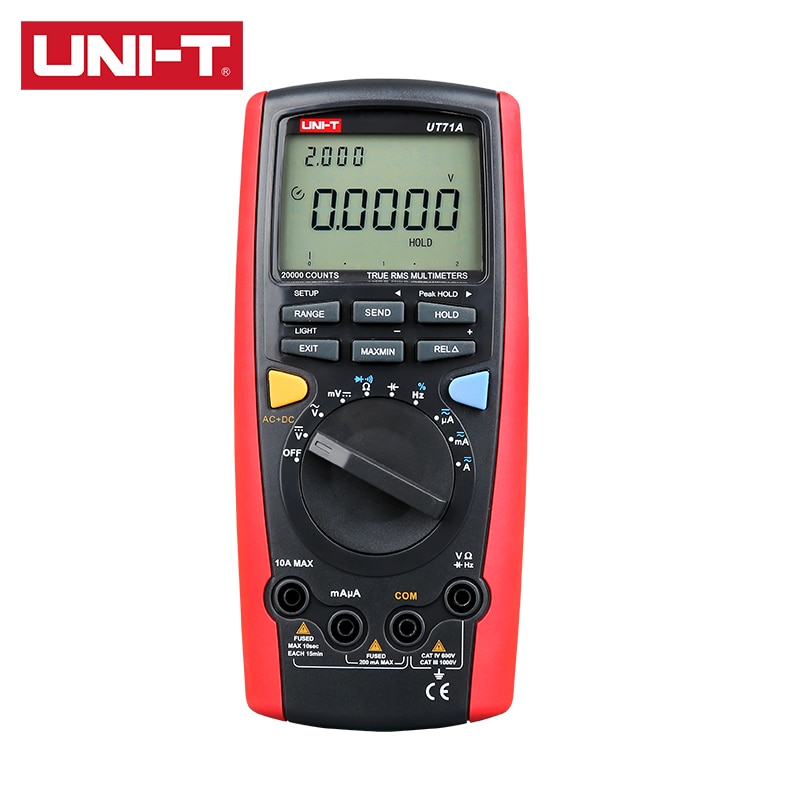

UT71 series Middle Size Intelligent Digital Multimeter
UT71 series can quickly solve complex problems on electronics, factory automation, distributionand electronic engineering equipment. UT71 series can set upper and lower limits, a very useful feature for improving electronics mass production inspection and screening efficiency.
Features
1. True RMS, duty cycle, continuity buzzer
2. MAX/MIN/REL modes; peak/data hold; analog bar graph
3. 45Hz~100kHz frequency response
4. LCD backlight; misplug alarm
5. Auto power off, low battery indication
6. Data logging
7. Auto and manual ranges selectable
8. USB interface, Bluetooth
9. Smart phone APP： iDMM
10. Works with UT-D07A Bluetooth adaptor
11. Download from Apple Store or Google Play Store
Models & Comparison
|
Specifications
|
Range
|
UT71A
|
UT71B
|
UT71C
|
UT71D
|
UT71E
|
|
DC voltage (V)
|
1000V
|
±(0.1%+8)
|
±(0.05%+5)
|
±(0.025%+5)
|
±(0.025%+5)
|
±(0.025%+5)
|
|
AC voltage (V)
|
1000V
|
±(0.8%+40)
|
±(0.6%+40)
|
±(0.4%+30)
|
±(0.4%+30)
|
±(0.4%+30)
|
|
DC current (A)
|
10A
|
±(0.2%+20)
|
±(0.15%+20)
|
±(0.1%+15)
|
±(0.1%+15)
|
±(0.1%+15)
|
|
AC current (A)
|
10A
|
±(1%+15)
|
±(0.8%+15)
|
±(0.7%+15)
|
±(0.7%+15)
|
±(0.7%+15)
|
|
Resistance (Ω)
|
20MΩ
|
±(0.5%+20)
|
±(0.4%+20)
|
|
|
|
|
40MΩ
|
|
|
±(0.3%+8)
|
±(0.3%+8)
|
±(0.3%+8)
|
|
|
Capacitance (F)
|
20mF
|
±(1.5%+20)
|
±(1.2%+20)
|
|
|
|
|
40mF
|
|
|
±(1%+20)
|
±(1%+20)
|
±(1%+20)
|
|
|
Frequency (Hz)
|
20Hz~200MHz
|
±(0.1%+15)
|
±(0.1%+15)
|
|
|
|
|
40Hz~400MHz
|
|
|
±(0.01%+8)
|
±(0.01%+8)
|
±(0.01%+8)
|
|
|
Temperature
|
-40°C~1000°C
|
|
±(1%+30)
|
±(1%+30)
|
±(1%+30)
|
±(1%+30)
|
|
-40°F~1832°F
|
|
±(1.5%+50)
|
±(1.5%+50)
|
±(1.5%+50)
|
±(1.5%+50)
|
|
|
Display count
|
|
20000
|
20000
|
40000
|
40000
|
40000
|
|
General Characteristics
|
||||||
|
Power
|
9V battery (6F22)
|
|||||
|
Display
|
73mm x 50mm
|
|||||
|
Product color
|
Red and grey
|
|||||
|
Product net weight
|
384g
|
|||||
|
Product size
|
200mm x 93mm x 40mm
|
|||||
|
Standard accessories
|
Battery, test leads, alligator clip, test clips, USB interface cable, PC software CD, carrying bag, point contact temperature probe (UT71B/UT71C/UT71D/UT71E), power adaptor (UT71E)
|
|||||
|
Standard individual packing
|
Gift box, English manual
|
|||||
|
Standard quantity per carton
|
10pcs
|
|||||
|
Standard carton measurement
|
UT71A/UT71B/UT71C/UT71D: 515mm x 380mm x 205mm; UT71E: 540mm x 360mm x 275mm
|
|||||
|
Standard carton gross weight
|
UT71A/UT71B/UT71C/UT71D: 9kg; UT71E: 12.5kg
|
|||||
