- Brand Name: UNI-T
- DIY Supplies: ELECTRICAL
- Certification: CE
- Origin: CN(Origin)
- Model Number: UT139S
- AC Current: 600μA/6000μA/60mA/600mA/6A/10A
- AC Voltage: 60mV/600mV/6V/60V/600V
- Measuring Resistance Range: 60MΩ
- Measuring Inductance Range: 10Hz~10MHz
- Display Type: Digital Display
- DC Current: 600μA/6000μA/60mA/600mA/6A/10A
- DC Voltage: 60mV/600mV/6V/60V/600V
- Measuring Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999μ/F/99.99μF/999.9μF/9.999mF/99.99mF
- Dimensions: 170mm x 80mm x 48mm
- Operating Temperature: 0 – 40 ℃
- Temperature (°C): -40°C~1000°C
- Temperature (°F): -40°F~1832°F
- Display count: 6000

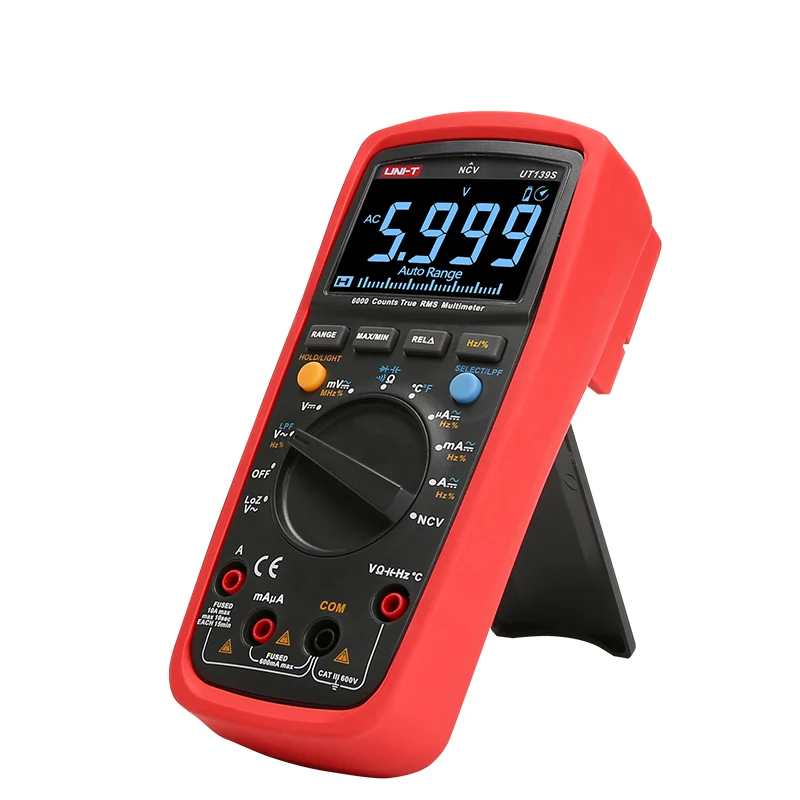

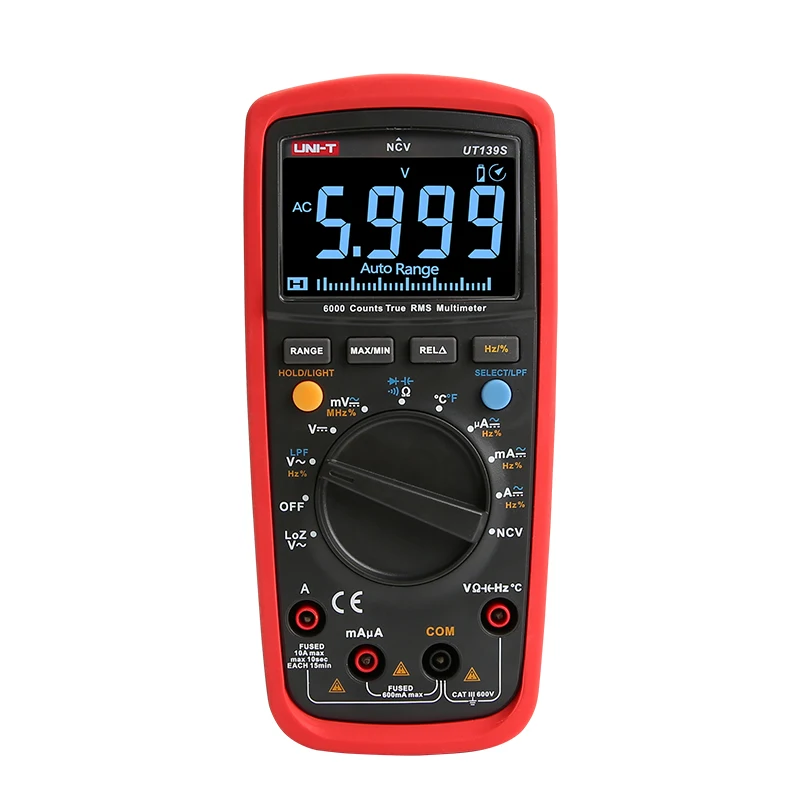

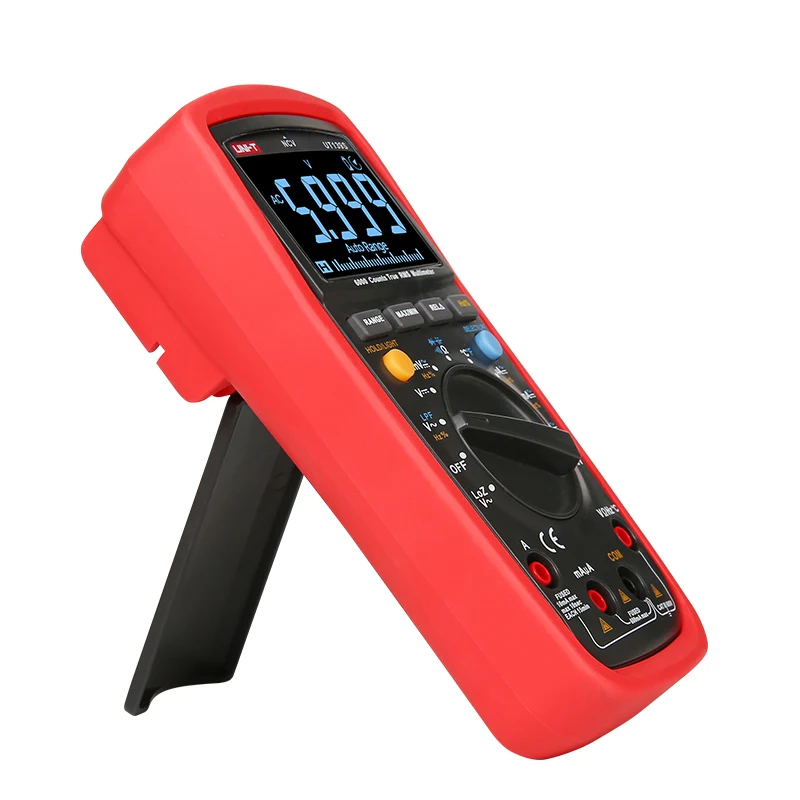

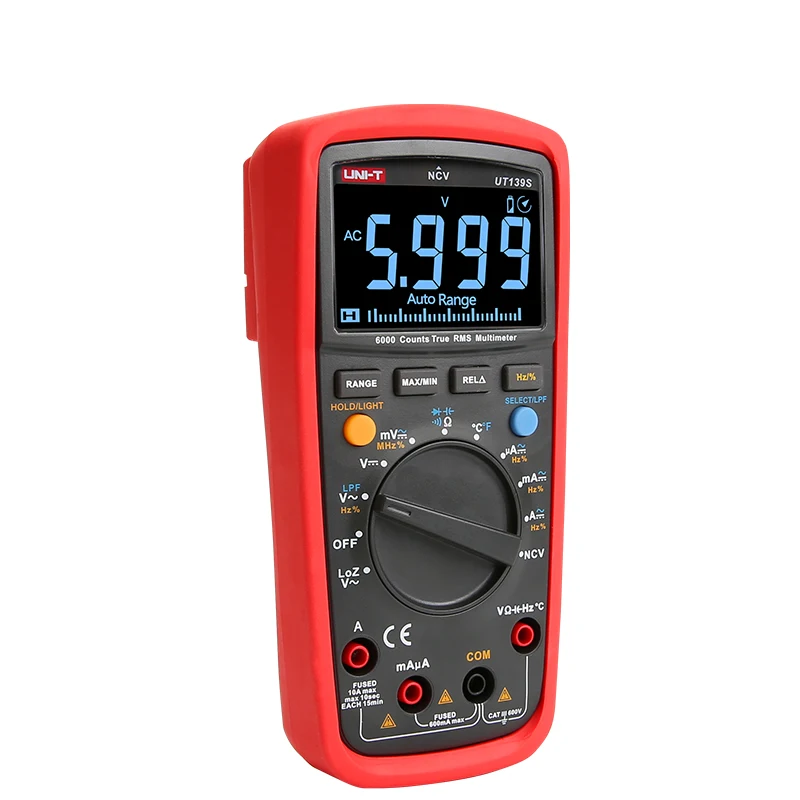

UT139S True RMS Digital Multimeter
UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results.
UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.
1. True RMS
2. NCV
3. Auto/manual ranges selectable
4. 31-segment analog bar graph
5. Diode, duty ratio and continuity buzzer
6. Black EBTN screen
| Specifications | Range | UT139S |
| DC voltage (V) | 600V | ±(0.5%+2) |
| AC voltage (V) | 600V | ±(0.8%+3) |
| DC current (A) | 10A | ±(0.7%+2) |
| AC current (A) | 10A | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) |
| Capacitance (F) | 99.99mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Temperature (°C) | -40°C~1000°C | ±(1%+4) |
| Temperature (°F) | -40°F~1832°F | ±(1.5%+5) |
| Features | ||
| Display count | 6000 | |
| Auto range/Manual range/True RMS | √ | |
| Bandwidth (Hz) | 45Hz~400Hz | |
| NCV/Continuity buzzer | √ | |
| Duty cycle | 0.1%~99.9% | √ |
| Diode | Around 3V | |
| LPF/LoZ (ACV) | √ | |
| Analog bar | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R6) x 2 | |
| Display | 58mm x 36mm | |
| Product color | Red and grey | |
| Product net weight | 345g | |
| Product size | 170mm x 80mm x 48mm | |

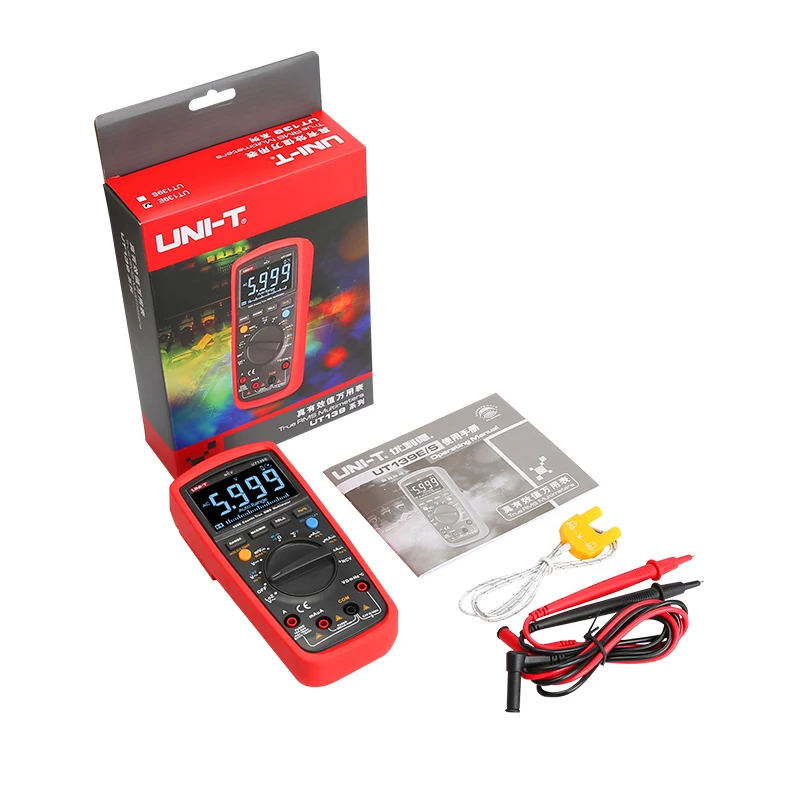

| Standard accessories | No Batteries, test leads, temperature probe | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 450mm x 330mm x 340mm | |
| Standard carton gross weight | 12.2kg | |
