Item Specifics:
Model: Conical Reducer
Material: Stainless Steel
Model Number: SKU483270

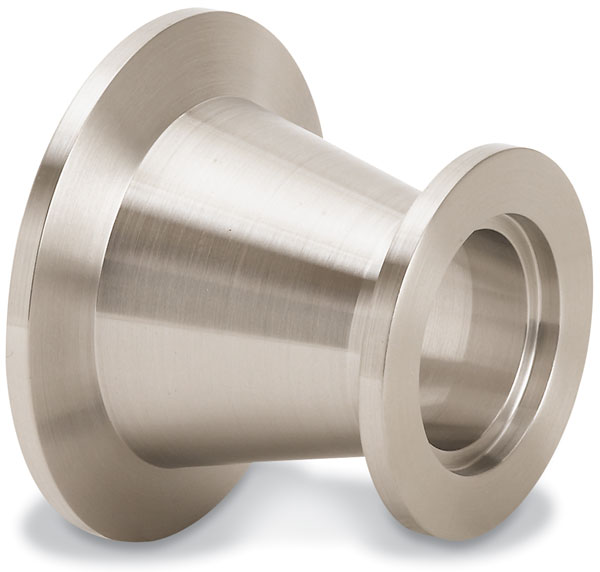

KF25 (NW-25) to KF-16 (NW-16) Conical Reducer, Stainless Steel, Vacuum Adapter
KF-25 Flange diameter 40 mm / KF-16 Flange diameter 30 mm
End to end length 40 mm
KF-16 to KF-25 Conical Reducer
ISO-KF Flange Size: NW-16 to NW-25
Features:
– These Conical KF-16 to KF-25 reducer vacuum fittings follow ISO-KF standards and have a flange size of NW-16 to NW-25.
– They are commonly used to build foreline vacuum plumbing and process systems.
– They are often called quick flange fittings because they are quick to assemble.
– A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure – click to enlarge).
– The centering ring contains a rubber elastomer o-ring.
– The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. – They are made of corrosive resistant stainless steel.
Package Included:
1 pcs flange
